Blueprints and Engineering documents

Created: 05-31-2011

Collected on this page are various engineering documents that I have found, e.g. blueprints for pens and parts.  The images shown are a smaller (30-40%) version of each document. To see it in full size just click on the image, but be patient as it will take longer to download and display on your screen (they are over .25MB).

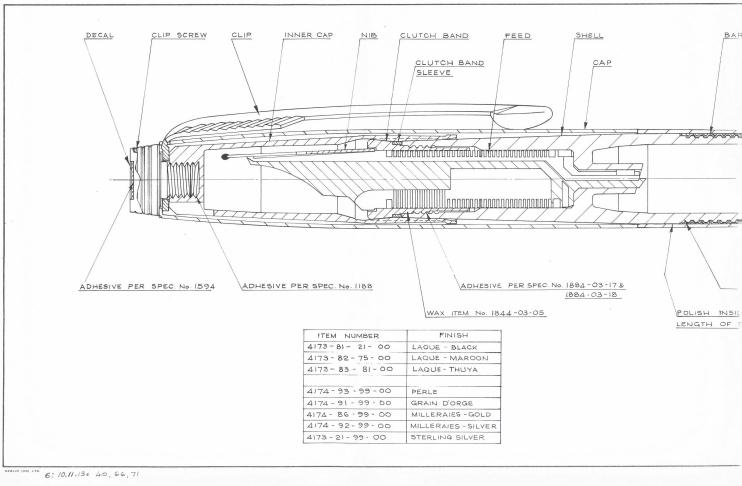

French Parker 75 FP with thick feed nib

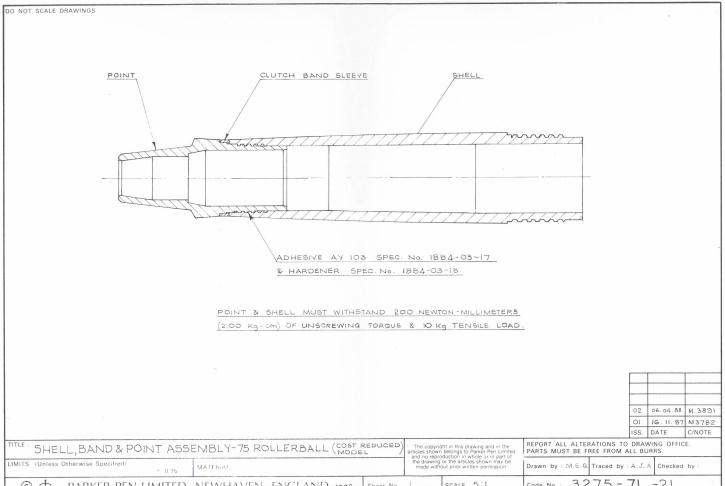

Rollerball gripping section

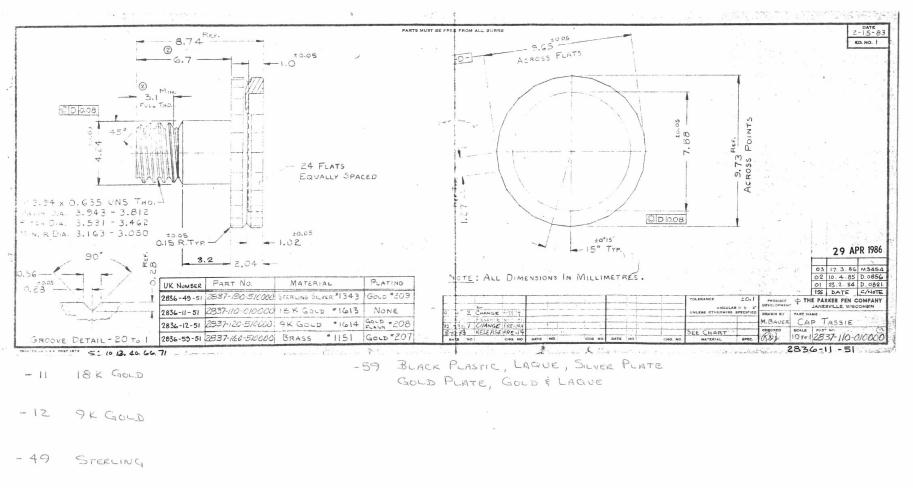

Premier cap tassie
